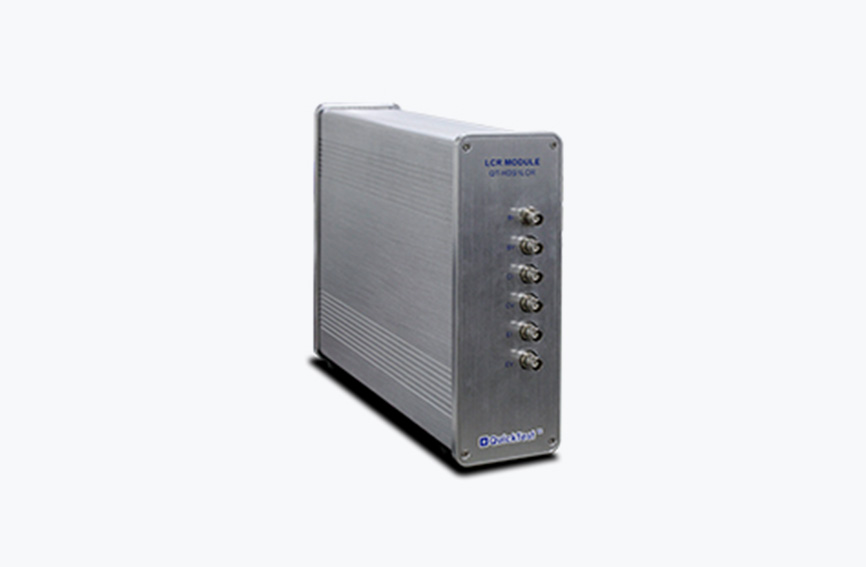

            QT-3107 LCR RG/CG test


            Self-developed LCR digital bridge supports Mosfet RG/CG testing and can also be used to test the capacitance of diodes with a resolution of 1fF.





















					Support double DIE











					High precision and anti-interference











					Fast testing











					Extended 2KV bias





























				Model


				QT-3107






				Product Advantages


				Using digital bridge, it has strong anti-interference ability and high test accuracy;

   The test time is 2-3 times faster than the analog bridge;

   Bias voltage up to 2KV;







				Key Features


				Test resolution 1fF;

   Comes with ±100V bias source;

   Test frequency: 1MHz, extended to 2MHz;

   Output amplitude: 0.025-2V;
























            Testing standards
