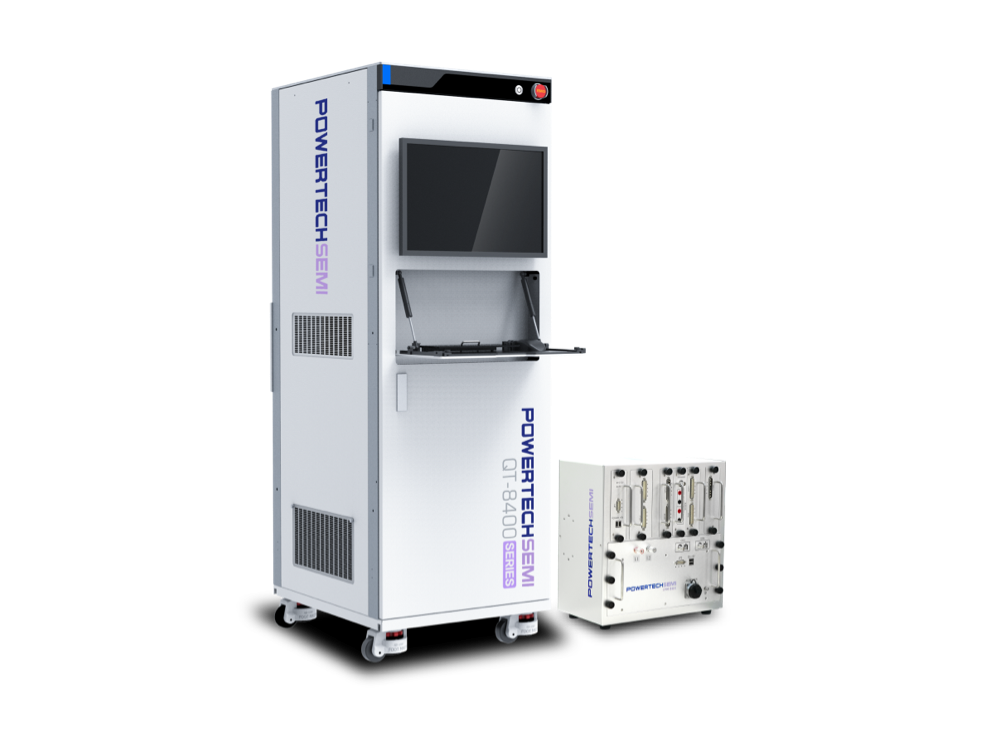

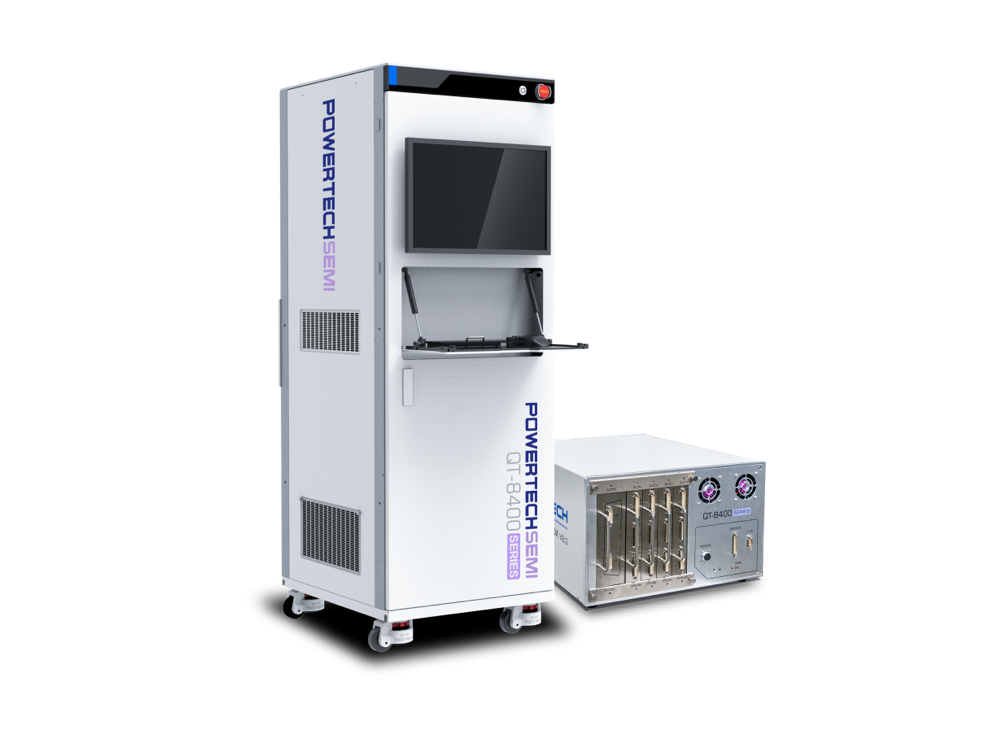

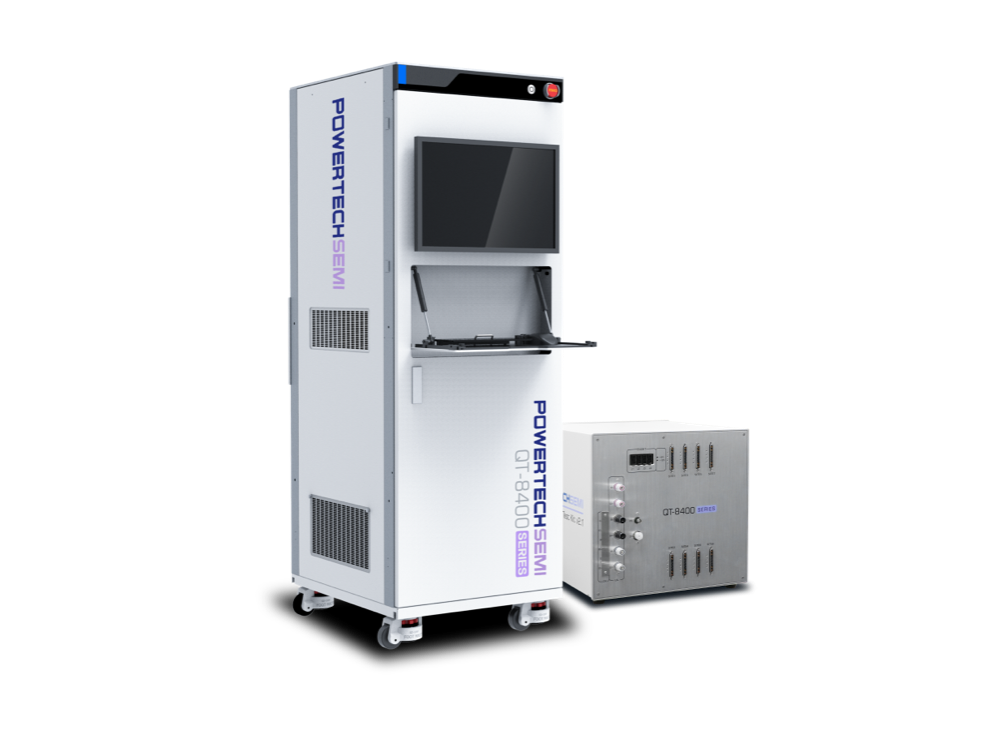

QT-8400PIM high-power dynamic and static comprehensive test system
QT-8400PIM test system, applied to power module IGBT or SIC, meets DC and AC dynamic and static parameter testing
|
Suspended power supply |
Multiple sites in parallel |
Multi-channel high precision |
Supports multiple extensions |
|
Type |
QT-8400PIM |
| Advantages | Applied to power module IGBT or SIC to meet DC and AC dynamic and static parameter testing |
| Main Features |
? Support 4 stations ? ISC 12KA LS<30nH ? AC：SW、 TRR 、ISC、QG、RBSOA test ? AC @2000A 2KV ? DC@2000A 2KV /3KV/6KV/8KV ? Protect Clamp<2us ? Test object：PIM |
|
